DESCRIPTION
Heterogeneous vinyl flooring is a multi-layer vinyl whose printed top layer provides unlimited design possibilities, long-lasting performance and low maintenance costs. Our heterogeneous vinyl flooring can be applied to almost all application areas, and we provide specialized heterogeneous flooring series and customized services.
Trioflor Heterogeneous flooring includes various kinds of colors and patterns, suitable for different scenes and occasions.
Excellent durability and wear resistance to heavy traffic and abrasion, adopting the thick wear layer and special UV coating.
No need for initial polishing with UV coating. Excellent stain resistance and easy cleaning: adopting the special UV coating.
Sanitized treatment with nano- silver technique: strong antibacterial function.
Dimensional stability: adopting spedal fiber glass layer.
PERFORMANCES AND BENEFITS

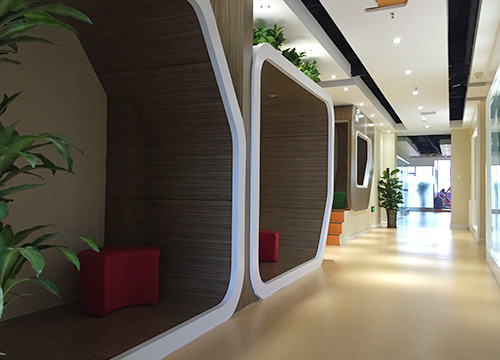

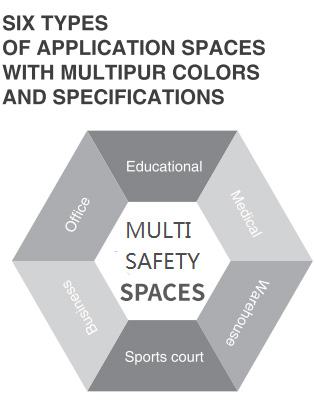

SIX TYPES OF APPLICATION SPACES WITH MULTIPUR COLORS AND SPECIFICATIONS
MULTI SAFETY SPACES
EDUCATIONAL
MEDICAL
WAREHOUSE
SPORTS COURT
BUSINESS
OFFICES
A NEW GENERATION OF ENVIRONMENTALLY FRIENDLY PLASTICIZERS
With the concept of health, safety and environmental protection, we will continue to optimize and improve the raw material formula of PVC flooring products. The products use the new generation of environmentally friendly palsticizer.
The only plasticizer in the industry that does not contain phthalate and endangers human health.
The only plasticizer in the industry that is suitable for both children`s toys and contact products.
LOWEST VOC RELEASE
TVOC is a general term for volatile organic compounds, mainly derived from the release of fuel explosive products and artifacts ( such as interior decoration material, paints, furniture, flooring, etc).
The TVOC release of the product is nearly zero, which is in the best level in the industry to ensure the optimal indoor air quality.
Top vinyl flooring supplier is at your service
If you want to customize floorings for your own brands, or purchase for your projects.please leave a message here, we will send our quotation and arrange the delivery of freesamples as soon as possible.

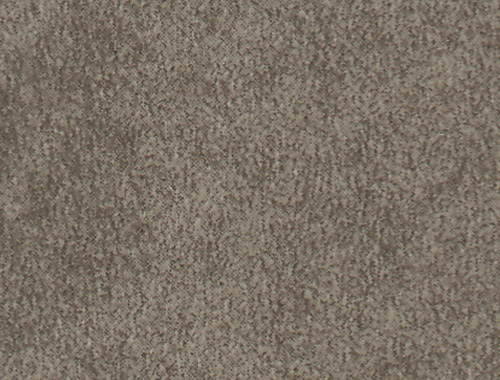

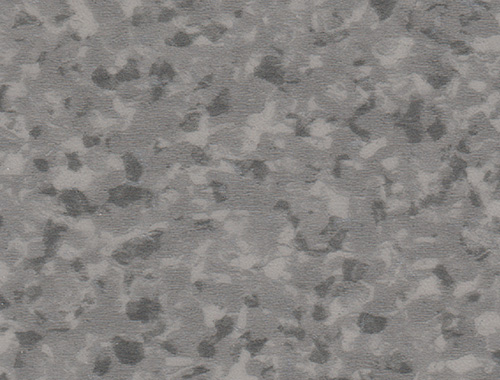

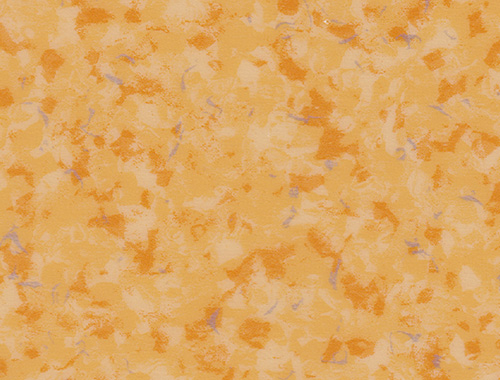

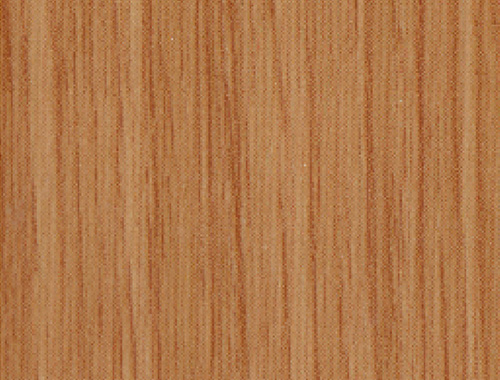

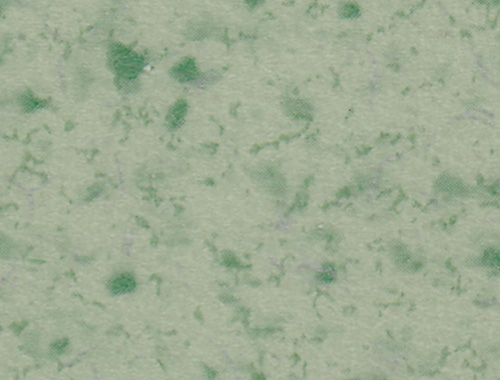

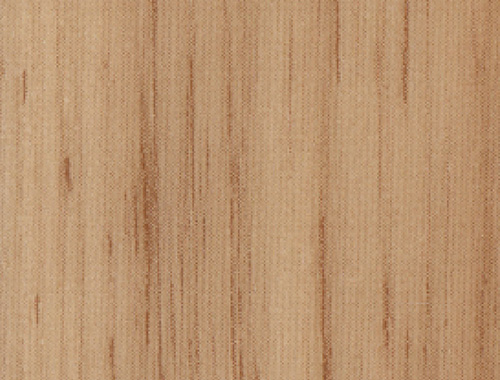

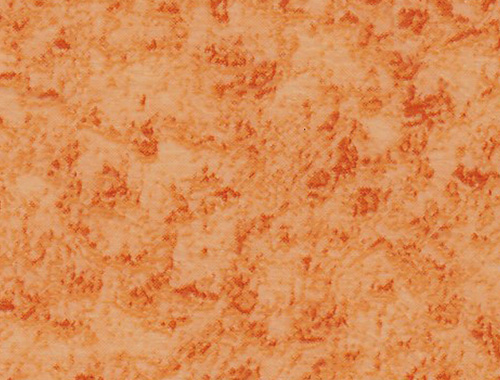

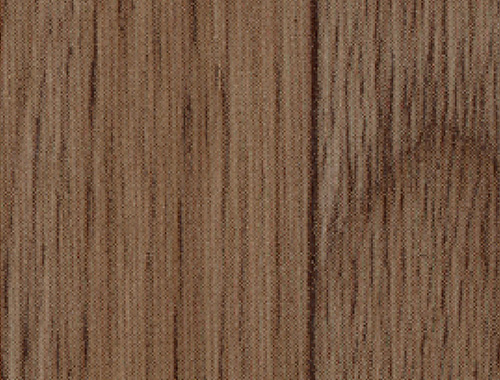

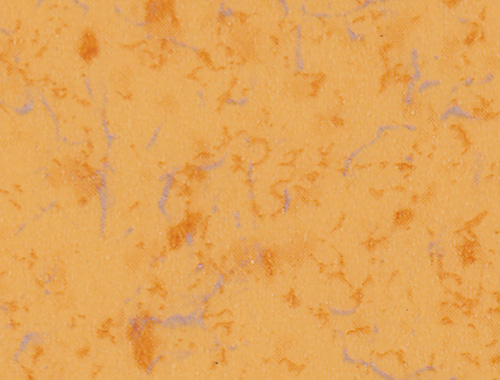

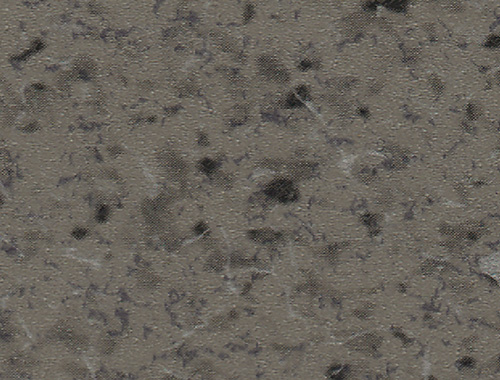

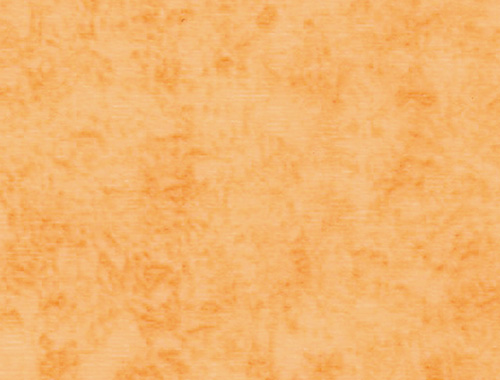

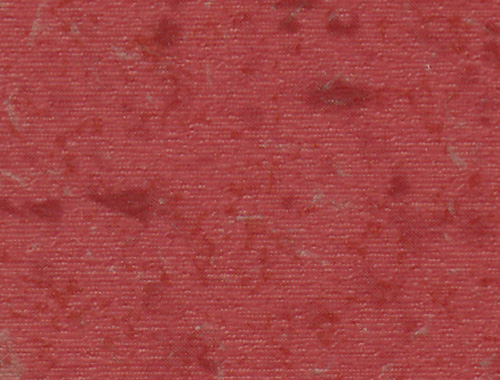

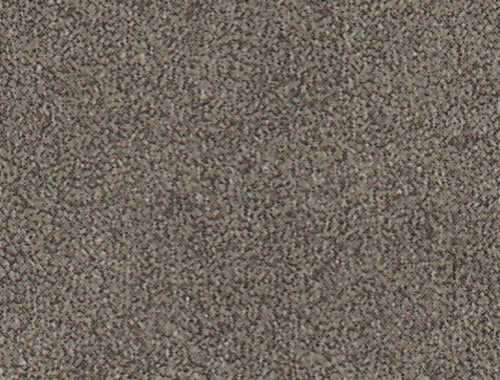

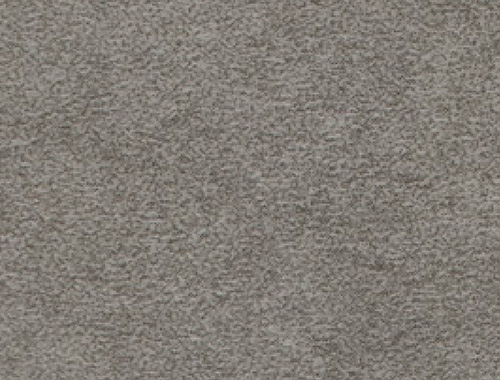

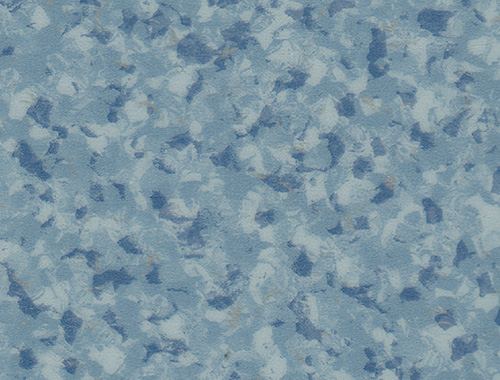

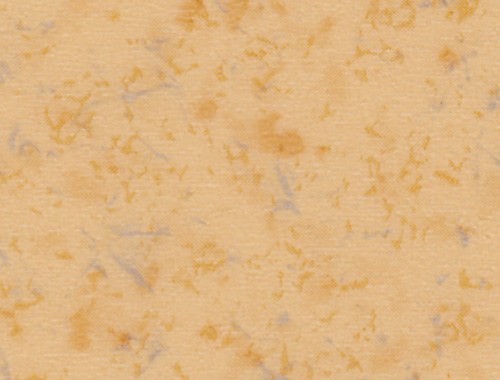

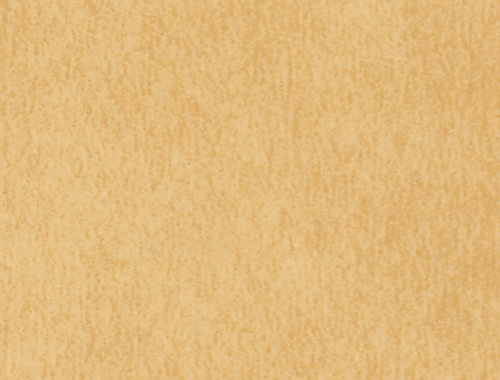

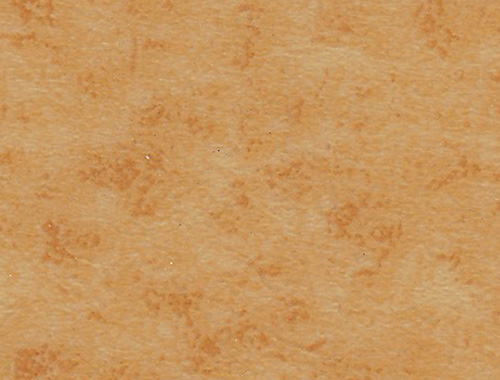

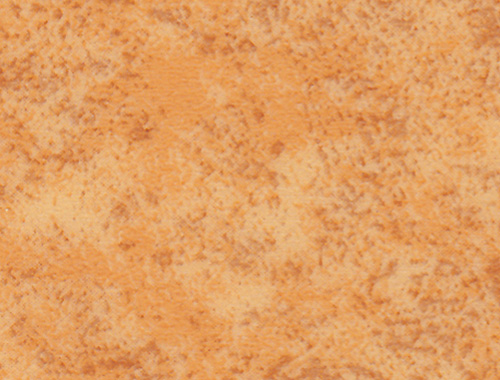

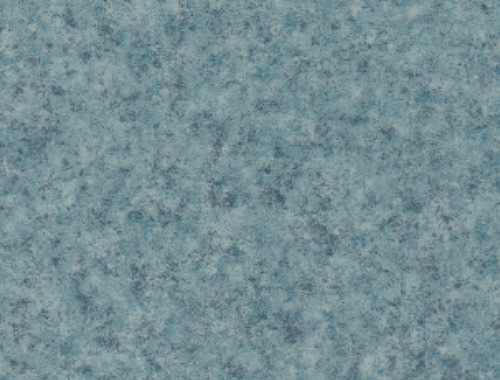

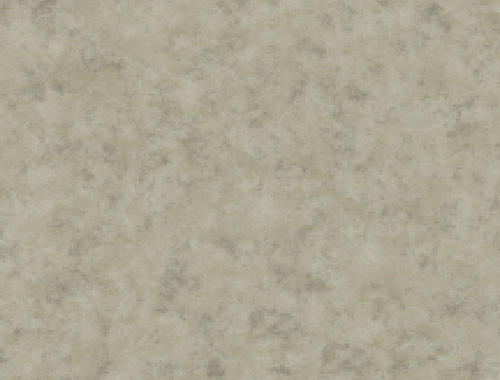

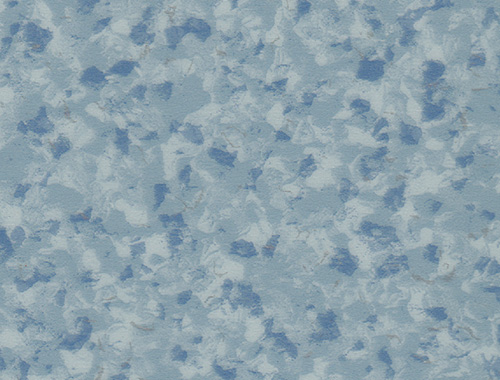

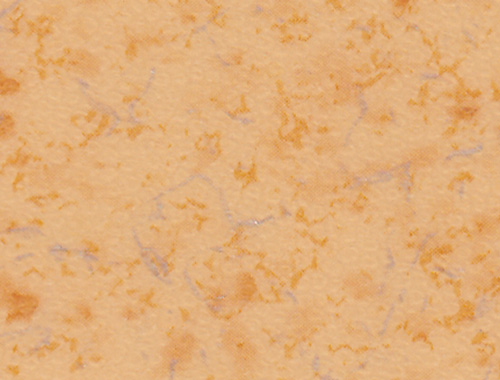

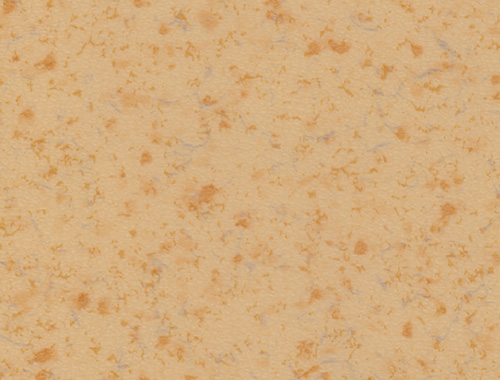

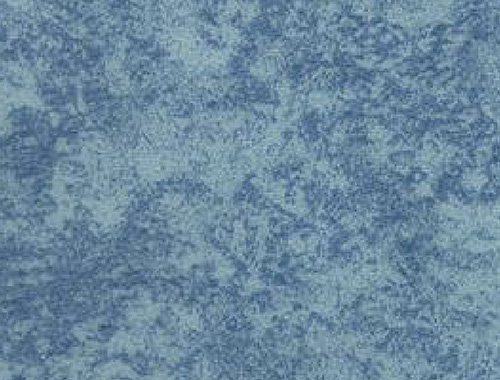

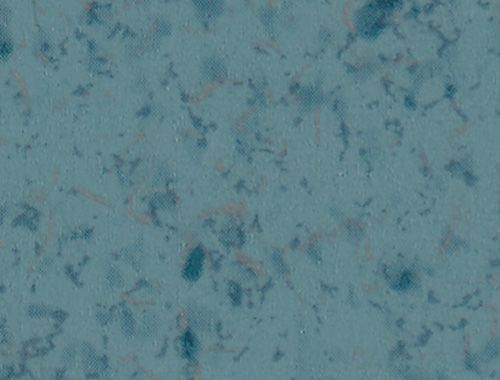

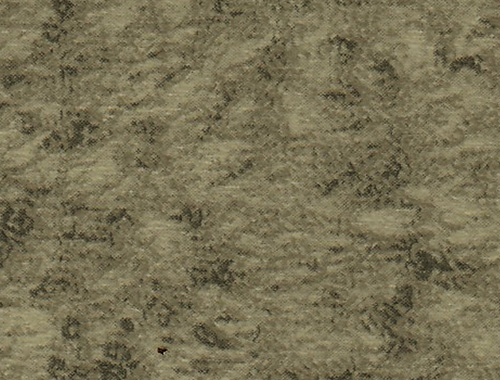

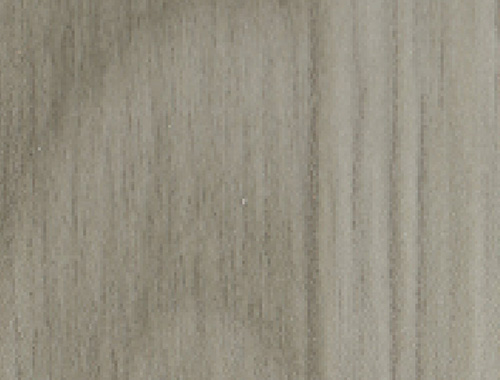

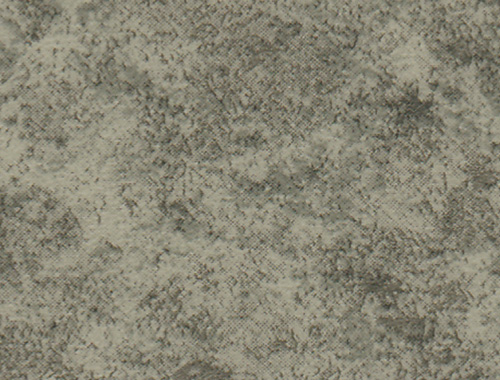

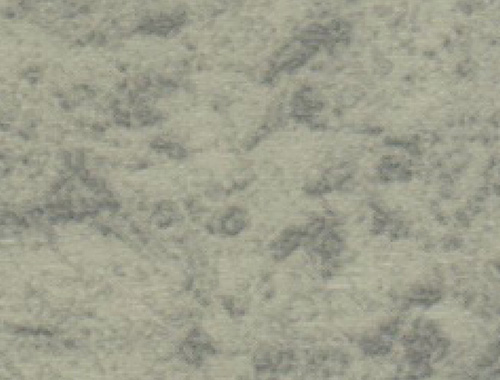

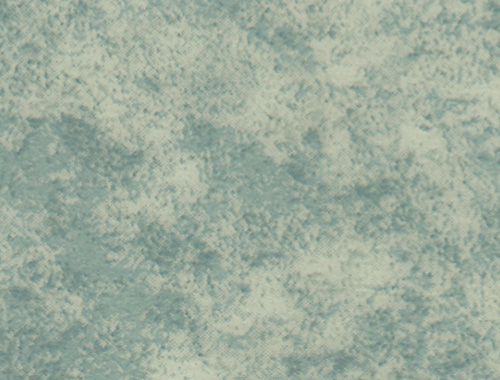

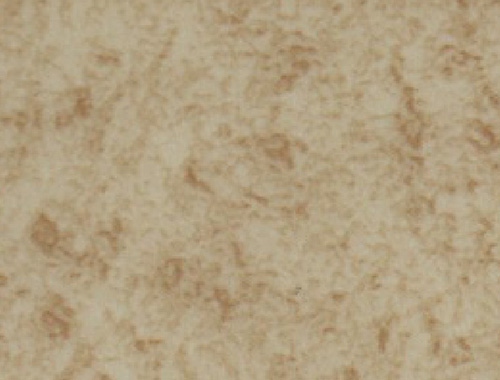

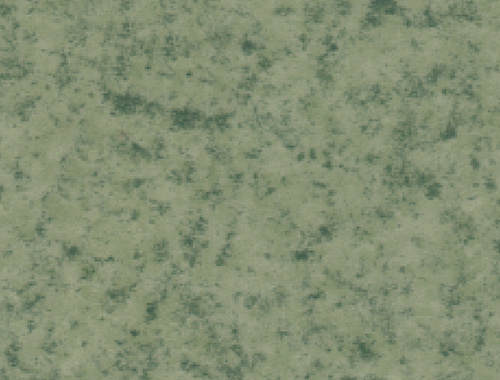

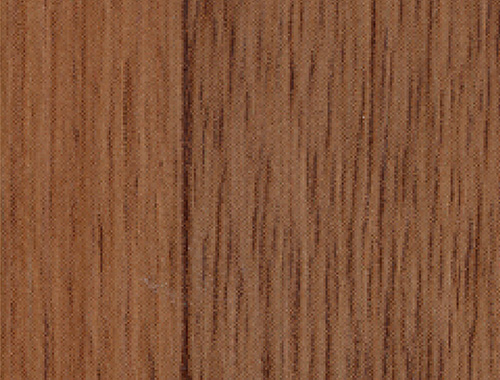

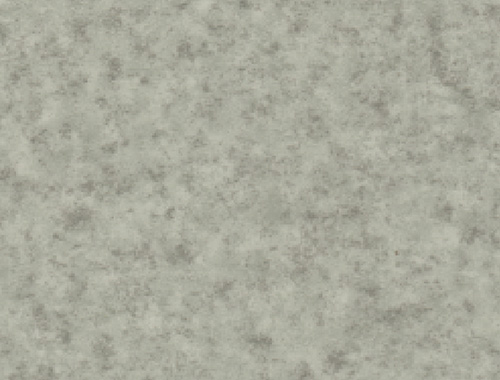

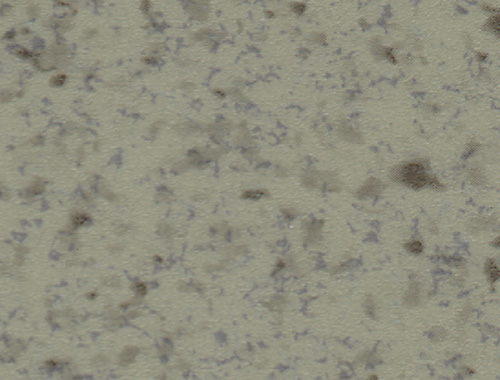

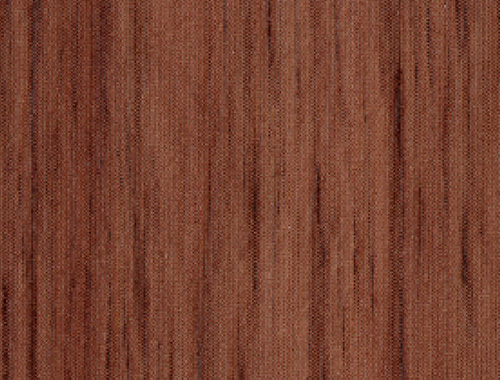

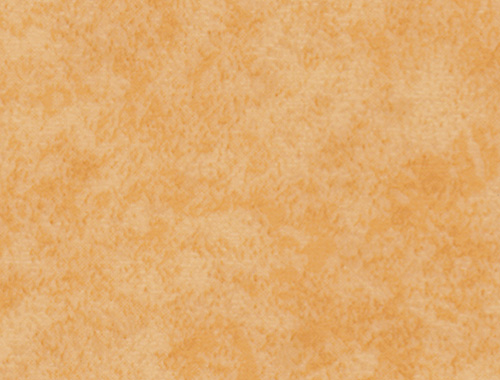

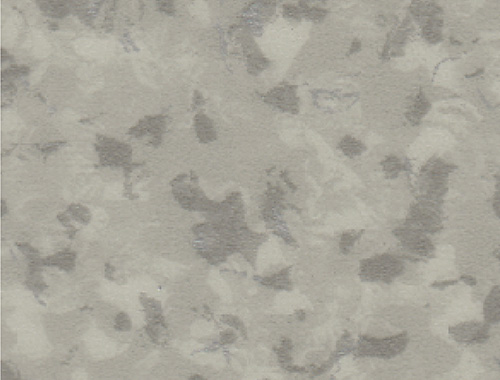

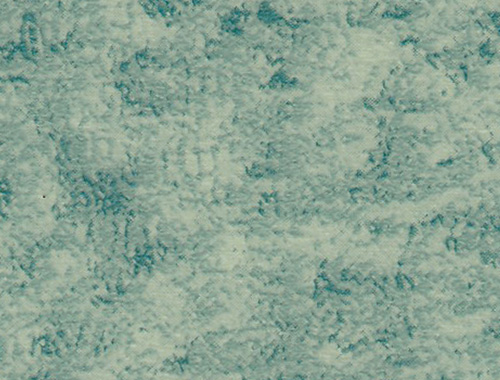

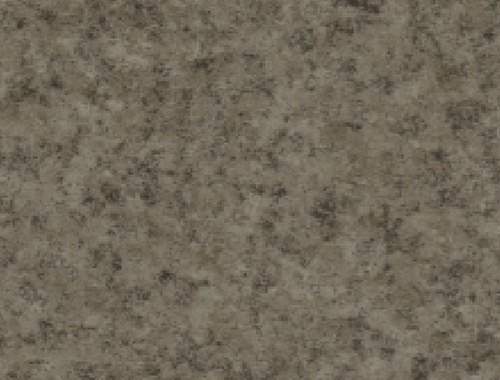

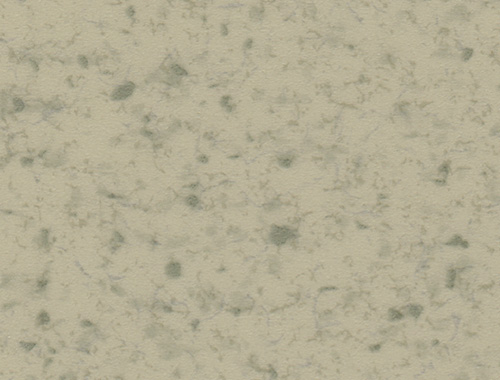

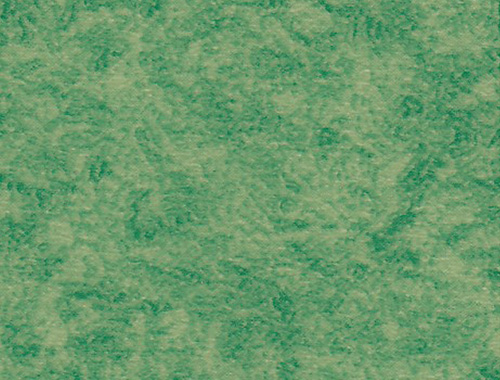

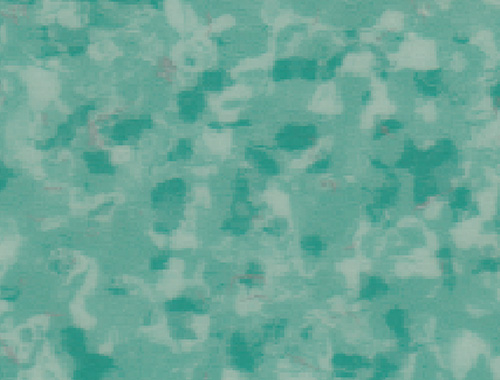

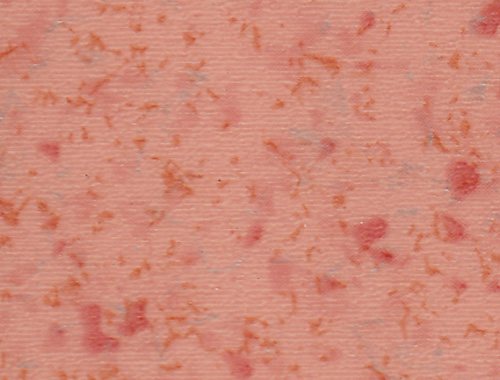

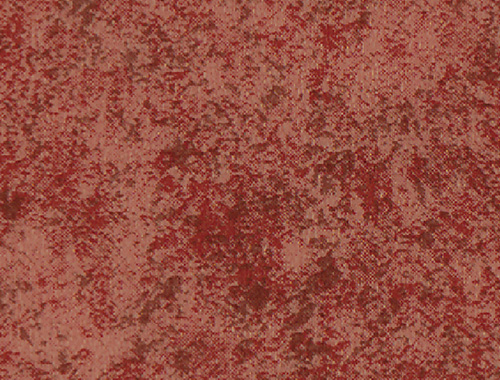

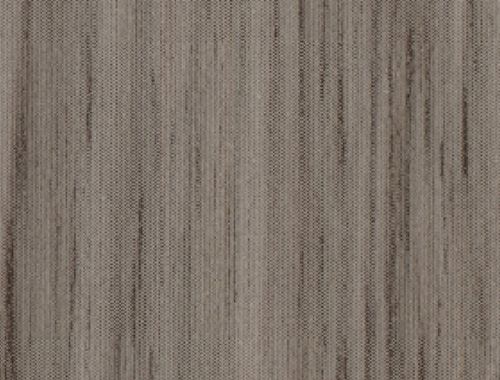

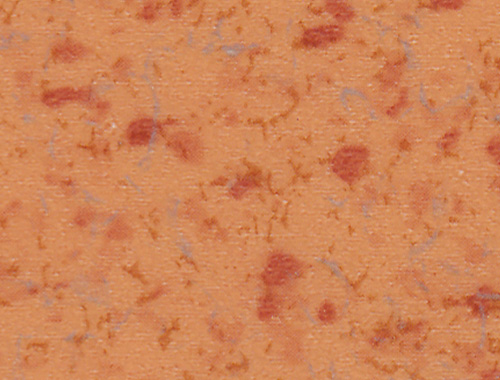

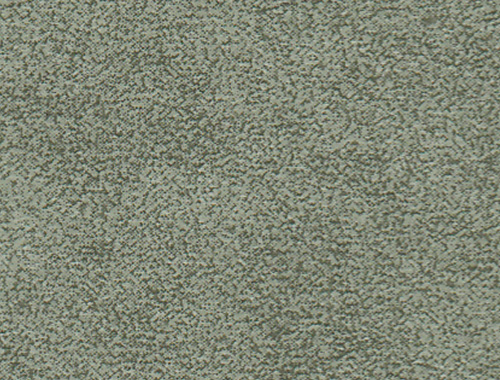

COLORS
TF-1170
CF-1171
TF-1172
CF-1173
TF-1174
CF-1175
TF-1176
CF-1177
TF-1178
CF-1179
Technical Support
| ITEM | STANDARD | REQUIRMENT | Ocean | Star |
| PERFORMANCE | ||||
| Fire rating | GB8624-2006 | class | BF1 | BF1 |
| Slip resistance | BGR181 | group | R9 | R9 |
| Dynamic coefficient of friction | EN 13893 | class | DS | DS |
| Impact sound insulation | ISO140-8 GB/T11982.1-1989 | dB | 10 | 10 |
| SPECIFICATION | ||||
| Width of sheet | EN426 | m | 2.0 | 2.0 |
| Length of sheet | EN426 | m | 20 | 15 |
| Total thickness | EN428 | mm | 2.0 | 2.6 |
| Thickness of wear layer | EN429 | mm | 0.35 | 0.5 |
| Weight | EN430 | Kg/ m | 3.5±10% | 2.6±10% |
| Residual indentation | EN433 | mm | 0.08 | 0.08 |
| Dimensional stability | EN434 | - | 0.05% | 0.05% |
| Color fastness | ISO 105-002 | rating | ≥6 | ≥6 |
| Abrasion group | EN649 | group | T | T |
| Thermal resistance | EN12667 | Mk/w | <0.17 | <0.17 |
| Thermal conductivity | EN 12524 | W/Mk | 0.25 | 0.25 |
| ADDITIONAL PROPERTY | ||||
| Castor chair | Underfloor heating | V | V | |
| Antistatic behavious | Chemical resistance | V | V |
| characteristics | standard | unit | result |
| type flooring | EN 649 | heterogeneous sheet | |
| material | polyvinyl chloride | ||
| safety criteria | |||
| flammability | GB 8624-2006 | class | BF1 |
| slip resistance | BGR 181 | group | R9 |
| dynamic coefficient of friction | EN 13893 | class | DS |
| impact sound reduction | ISO 140-8 GB/T 11982.1-1989 | dB | 10 |
| performance behavior | |||
| roll width | EN 426 | m | 2.0 |
| roll length | EN 426 | m | 15-20 |
| overall thickness | EN 428 | mm | 2.0-3.0 |
| thickness of wear layer | EN 429 | mm | 0.35-0.5 |
| residual indentation | EN 433 | mm | 0.08 |
| dimensional stability | EM 434 | - | 0.05% |
| color fastness | ISO 105-B02 | rating | ≥6 |
| wear resistance | EN 649 | group | T |
| thermal resistance | EN 12667 | ㎡K/W | ＜0.17 |
| thermal conductivity | EN 12524 | W/Mk | 0.25 |
| additional property | |||
| castor chair | √ | underfloor heating | √ |
| antistatic behavious | √ | chemical resistance | √ |
Top vinyl flooring supplier is at your service
If you want to customize floorings for your own brands, or purchase for your projects.please leave a message here, we will send our quotation and arrange the delivery of freesamples as soon as possible.

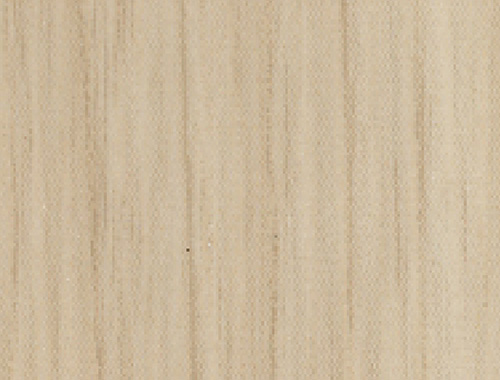

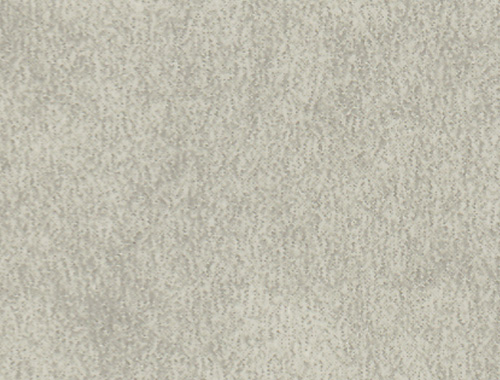

COLORS
LF-6801
LF-6802
LF-6803
LF-6804
LF-6805
LF-6806
LF-6807
LF-6808
LF-6809
LF-6810
Technical Support
| ITEM | STANDARD | REQUIRMENT | Ocean | Star |
| PERFORMANCE | ||||
| Fire rating | GB8624-2006 | class | BF1 | BF1 |
| Slip resistance | BGR181 | group | R9 | R9 |
| Dynamic coefficient of friction | EN 13893 | class | DS | DS |
| Impact sound insulation | ISO140-8 GB/T11982.1-1989 | dB | 10 | 10 |
| SPECIFICATION | ||||
| Width of sheet | EN426 | m | 2.0 | 2.0 |
| Length of sheet | EN426 | m | 20 | 15 |
| Total thickness | EN428 | mm | 2.0 | 2.6 |
| Thickness of wear layer | EN429 | mm | 0.35 | 0.5 |
| Weight | EN430 | Kg/ m | 3.5±10% | 2.6±10% |
| Residual indentation | EN433 | mm | 0.08 | 0.08 |
| Dimensional stability | EN434 | - | 0.05% | 0.05% |
| Color fastness | ISO 105-002 | rating | ≥6 | ≥6 |
| Abrasion group | EN649 | group | T | T |
| Thermal resistance | EN12667 | Mk/w | <0.17 | <0.17 |
| Thermal conductivity | EN 12524 | W/Mk | 0.25 | 0.25 |
| ADDITIONAL PROPERTY | ||||
| Castor chair | Underfloor heating | V | V | |
| Antistatic behavious | Chemical resistance | V | V |
| characteristics | standard | unit | result |
| type flooring | EN 649 | heterogeneous sheet | |
| material | polyvinyl chloride | ||
| safety criteria | |||
| flammability | GB 8624-2006 | class | BF1 |
| slip resistance | BGR 181 | group | R9 |
| dynamic coefficient of friction | EN 13893 | class | DS |
| impact sound reduction | ISO 140-8 GB/T 11982.1-1989 | dB | 10 |
| performance behavior | |||
| roll width | EN 426 | m | 2.0 |
| roll length | EN 426 | m | 15-20 |
| overall thickness | EN 428 | mm | 2.0-3.0 |
| thickness of wear layer | EN 429 | mm | 0.35-0.5 |
| residual indentation | EN 433 | mm | 0.08 |
| dimensional stability | EM 434 | - | 0.05% |
| color fastness | ISO 105-B02 | rating | ≥6 |
| wear resistance | EN 649 | group | T |
| thermal resistance | EN 12667 | ㎡K/W | ＜0.17 |
| thermal conductivity | EN 12524 | W/Mk | 0.25 |
| additional property | |||
| castor chair | √ | underfloor heating | √ |
| antistatic behavious | √ | chemical resistance | √ |
Top vinyl flooring supplier is at your service
If you want to customize floorings for your own brands, or purchase for your projects.please leave a message here, we will send our quotation and arrange the delivery of freesamples as soon as possible.

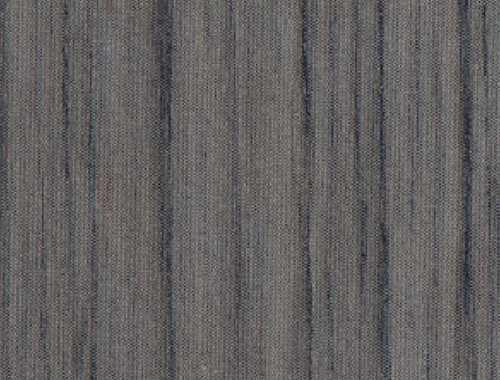

COLORS
JF-0930
JF-0931
JF-0932
JF-0933
JF-0934
JF-0935
JF-0936
JF-0937
JF-0938
JF-0939
JF-0940
JF-0941
JF-0942
JF-0943
JF-0944
JF-0945
Technical Support
| ITEM | STANDARD | REQUIRMENT | Ocean | Star |
| PERFORMANCE | ||||
| Fire rating | GB8624-2006 | class | BF1 | BF1 |
| Slip resistance | BGR181 | group | R9 | R9 |
| Dynamic coefficient of friction | EN 13893 | class | DS | DS |
| Impact sound insulation | ISO140-8 GB/T11982.1-1989 | dB | 10 | 10 |
| SPECIFICATION | ||||
| Width of sheet | EN426 | m | 2.0 | 2.0 |
| Length of sheet | EN426 | m | 20 | 15 |
| Total thickness | EN428 | mm | 2.0 | 2.6 |
| Thickness of wear layer | EN429 | mm | 0.35 | 0.5 |
| Weight | EN430 | Kg/ m | 3.5±10% | 2.6±10% |
| Residual indentation | EN433 | mm | 0.08 | 0.08 |
| Dimensional stability | EN434 | - | 0.05% | 0.05% |
| Color fastness | ISO 105-002 | rating | ≥6 | ≥6 |
| Abrasion group | EN649 | group | T | T |
| Thermal resistance | EN12667 | Mk/w | <0.17 | <0.17 |
| Thermal conductivity | EN 12524 | W/Mk | 0.25 | 0.25 |
| ADDITIONAL PROPERTY | ||||
| Castor chair | Underfloor heating | V | V | |
| Antistatic behavious | Chemical resistance | V | V |
| characteristics | standard | unit | result |
| type flooring | EN 649 | heterogeneous sheet | |
| material | polyvinyl chloride | ||
| safety criteria | |||
| flammability | GB 8624-2006 | class | BF1 |
| slip resistance | BGR 181 | group | R9 |
| dynamic coefficient of friction | EN 13893 | class | DS |
| impact sound reduction | ISO 140-8 GB/T 11982.1-1989 | dB | 10 |
| performance behavior | |||
| roll width | EN 426 | m | 2.0 |
| roll length | EN 426 | m | 15-20 |
| overall thickness | EN 428 | mm | 2.0-3.0 |
| thickness of wear layer | EN 429 | mm | 0.35-0.5 |
| residual indentation | EN 433 | mm | 0.08 |
| dimensional stability | EM 434 | - | 0.05% |
| color fastness | ISO 105-B02 | rating | ≥6 |
| wear resistance | EN 649 | group | T |
| thermal resistance | EN 12667 | ㎡K/W | ＜0.17 |
| thermal conductivity | EN 12524 | W/Mk | 0.25 |
| additional property | |||
| castor chair | √ | underfloor heating | √ |
| antistatic behavious | √ | chemical resistance | √ |
Top vinyl flooring supplier is at your service
If you want to customize floorings for your own brands, or purchase for your projects.please leave a message here, we will send our quotation and arrange the delivery of freesamples as soon as possible.

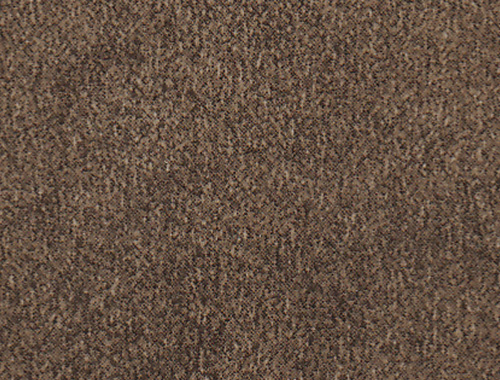

COLORS
YT-2001
YT-2002
YT-2003
YT-2004
YT-2005
YT-2006
YT-2007
YT-2008
YT-2009
YT-2010
YT-2011
Technical Support
| ITEM | STANDARD | REQUIRMENT | Ocean | Star |
| PERFORMANCE | ||||
| Fire rating | GB8624-2006 | class | BF1 | BF1 |
| Slip resistance | BGR181 | group | R9 | R9 |
| Dynamic coefficient of friction | EN 13893 | class | DS | DS |
| Impact sound insulation | ISO140-8 GB/T11982.1-1989 | dB | 10 | 10 |
| SPECIFICATION | ||||
| Width of sheet | EN426 | m | 2.0 | 2.0 |
| Length of sheet | EN426 | m | 20 | 15 |
| Total thickness | EN428 | mm | 2.0 | 2.6 |
| Thickness of wear layer | EN429 | mm | 0.35 | 0.5 |
| Weight | EN430 | Kg/ m | 3.5±10% | 2.6±10% |
| Residual indentation | EN433 | mm | 0.08 | 0.08 |
| Dimensional stability | EN434 | - | 0.05% | 0.05% |
| Color fastness | ISO 105-002 | rating | ≥6 | ≥6 |
| Abrasion group | EN649 | group | T | T |
| Thermal resistance | EN12667 | Mk/w | <0.17 | <0.17 |
| Thermal conductivity | EN 12524 | W/Mk | 0.25 | 0.25 |
| ADDITIONAL PROPERTY | ||||
| Castor chair | Underfloor heating | V | V | |
| Antistatic behavious | Chemical resistance | V | V |
| characteristics | standard | unit | result |
| type flooring | EN 649 | heterogeneous sheet | |
| material | polyvinyl chloride | ||
| safety criteria | |||
| flammability | GB 8624-2006 | class | BF1 |
| slip resistance | BGR 181 | group | R9 |
| dynamic coefficient of friction | EN 13893 | class | DS |
| impact sound reduction | ISO 140-8 GB/T 11982.1-1989 | dB | 10 |
| performance behavior | |||
| roll width | EN 426 | m | 2.0 |
| roll length | EN 426 | m | 15-20 |
| overall thickness | EN 428 | mm | 2.0-3.0 |
| thickness of wear layer | EN 429 | mm | 0.35-0.5 |
| residual indentation | EN 433 | mm | 0.08 |
| dimensional stability | EM 434 | - | 0.05% |
| color fastness | ISO 105-B02 | rating | ≥6 |
| wear resistance | EN 649 | group | T |
| thermal resistance | EN 12667 | ㎡K/W | ＜0.17 |
| thermal conductivity | EN 12524 | W/Mk | 0.25 |
| additional property | |||
| castor chair | √ | underfloor heating | √ |
| antistatic behavious | √ | chemical resistance | √ |
Top vinyl flooring supplier is at your service
If you want to customize floorings for your own brands, or purchase for your projects.please leave a message here, we will send our quotation and arrange the delivery of freesamples as soon as possible.

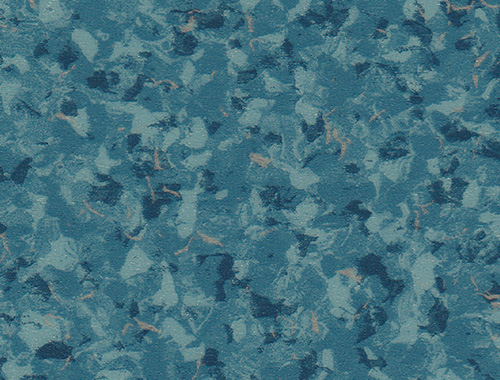

COLORS
T-2601
T-2602
T-2603
T-2604
T-2605
T-2606
T-2607
T-2608
T-2609
T-2610
T-2611
T-2612
T-2614
T-2615
Technical Support
| ITEM | STANDARD | REQUIRMENT | Ocean | Star |
| PERFORMANCE | ||||
| Fire rating | GB8624-2006 | class | BF1 | BF1 |
| Slip resistance | BGR181 | group | R9 | R9 |
| Dynamic coefficient of friction | EN 13893 | class | DS | DS |
| Impact sound insulation | ISO140-8 GB/T11982.1-1989 | dB | 10 | 10 |
| SPECIFICATION | ||||
| Width of sheet | EN426 | m | 2.0 | 2.0 |
| Length of sheet | EN426 | m | 20 | 15 |
| Total thickness | EN428 | mm | 2.0 | 2.6 |
| Thickness of wear layer | EN429 | mm | 0.35 | 0.5 |
| Weight | EN430 | Kg/ m | 3.5±10% | 2.6±10% |
| Residual indentation | EN433 | mm | 0.08 | 0.08 |
| Dimensional stability | EN434 | - | 0.05% | 0.05% |
| Color fastness | ISO 105-002 | rating | ≥6 | ≥6 |
| Abrasion group | EN649 | group | T | T |
| Thermal resistance | EN12667 | Mk/w | <0.17 | <0.17 |
| Thermal conductivity | EN 12524 | W/Mk | 0.25 | 0.25 |
| ADDITIONAL PROPERTY | ||||
| Castor chair | Underfloor heating | V | V | |
| Antistatic behavious | Chemical resistance | V | V |
| characteristics | standard | unit | result |
| type flooring | EN 649 | heterogeneous sheet | |
| material | polyvinyl chloride | ||
| safety criteria | |||
| flammability | GB 8624-2006 | class | BF1 |
| slip resistance | BGR 181 | group | R9 |
| dynamic coefficient of friction | EN 13893 | class | DS |
| impact sound reduction | ISO 140-8 GB/T 11982.1-1989 | dB | 10 |
| performance behavior | |||
| roll width | EN 426 | m | 2.0 |
| roll length | EN 426 | m | 15-20 |
| overall thickness | EN 428 | mm | 2.0-3.0 |
| thickness of wear layer | EN 429 | mm | 0.35-0.5 |
| residual indentation | EN 433 | mm | 0.08 |
| dimensional stability | EM 434 | - | 0.05% |
| color fastness | ISO 105-B02 | rating | ≥6 |
| wear resistance | EN 649 | group | T |
| thermal resistance | EN 12667 | ㎡K/W | ＜0.17 |
| thermal conductivity | EN 12524 | W/Mk | 0.25 |
| additional property | |||
| castor chair | √ | underfloor heating | √ |
| antistatic behavious | √ | chemical resistance | √ |
Top vinyl flooring supplier is at your service
If you want to customize floorings for your own brands, or purchase for your projects.please leave a message here, we will send our quotation and arrange the delivery of freesamples as soon as possible.
COLORS
SR-0801
SR-0802
SR-0803
SR-0804
SR-0805
SR-0806
SR-0807
SR-0808
SR-0809
SR-0810
Technical Support
| ITEM | STANDARD | REQUIRMENT | Ocean | Star |
| PERFORMANCE | ||||
| Fire rating | GB8624-2006 | class | BF1 | BF1 |
| Slip resistance | BGR181 | group | R9 | R9 |
| Dynamic coefficient of friction | EN 13893 | class | DS | DS |
| Impact sound insulation | ISO140-8 GB/T11982.1-1989 | dB | 10 | 10 |
| SPECIFICATION | ||||
| Width of sheet | EN426 | m | 2.0 | 2.0 |
| Length of sheet | EN426 | m | 20 | 15 |
| Total thickness | EN428 | mm | 2.0 | 2.6 |
| Thickness of wear layer | EN429 | mm | 0.35 | 0.5 |
| Weight | EN430 | Kg/ m | 3.5±10% | 2.6±10% |
| Residual indentation | EN433 | mm | 0.08 | 0.08 |
| Dimensional stability | EN434 | - | 0.05% | 0.05% |
| Color fastness | ISO 105-002 | rating | ≥6 | ≥6 |
| Abrasion group | EN649 | group | T | T |
| Thermal resistance | EN12667 | Mk/w | <0.17 | <0.17 |
| Thermal conductivity | EN 12524 | W/Mk | 0.25 | 0.25 |
| ADDITIONAL PROPERTY | ||||
| Castor chair | Underfloor heating | V | V | |
| Antistatic behavious | Chemical resistance | V | V |
| characteristics | standard | unit | result |
| type flooring | EN 649 | heterogeneous sheet | |
| material | polyvinyl chloride | ||
| safety criteria | |||
| flammability | GB 8624-2006 | class | BF1 |
| slip resistance | BGR 181 | group | R9 |
| dynamic coefficient of friction | EN 13893 | class | DS |
| impact sound reduction | ISO 140-8 GB/T 11982.1-1989 | dB | 10 |
| performance behavior | |||
| roll width | EN 426 | m | 2.0 |
| roll length | EN 426 | m | 15-20 |
| overall thickness | EN 428 | mm | 2.0-3.0 |
| thickness of wear layer | EN 429 | mm | 0.35-0.5 |
| residual indentation | EN 433 | mm | 0.08 |
| dimensional stability | EM 434 | - | 0.05% |
| color fastness | ISO 105-B02 | rating | ≥6 |
| wear resistance | EN 649 | group | T |
| thermal resistance | EN 12667 | ㎡K/W | ＜0.17 |
| thermal conductivity | EN 12524 | W/Mk | 0.25 |
| additional property | |||
| castor chair | √ | underfloor heating | √ |
| antistatic behavious | √ | chemical resistance | √ |
Top vinyl flooring supplier is at your service
If you want to customize floorings for your own brands, or purchase for your projects.please leave a message here, we will send our quotation and arrange the delivery of freesamples as soon as possible.
COLORS
SW-62
SW-61
SW-64
SW-63
SW-65
SW-66
SW-67
SW-68
SW-69
SW-70
SW-71
SW-72
Technical Support
| ITEM | STANDARD | REQUIRMENT | Ocean | Star |
| PERFORMANCE | ||||
| Fire rating | GB8624-2006 | class | BF1 | BF1 |
| Slip resistance | BGR181 | group | R9 | R9 |
| Dynamic coefficient of friction | EN 13893 | class | DS | DS |
| Impact sound insulation | ISO140-8 GB/T11982.1-1989 | dB | 10 | 10 |
| SPECIFICATION | ||||
| Width of sheet | EN426 | m | 2.0 | 2.0 |
| Length of sheet | EN426 | m | 20 | 15 |
| Total thickness | EN428 | mm | 2.0 | 2.6 |
| Thickness of wear layer | EN429 | mm | 0.35 | 0.5 |
| Weight | EN430 | Kg/ m | 3.5±10% | 2.6±10% |
| Residual indentation | EN433 | mm | 0.08 | 0.08 |
| Dimensional stability | EN434 | - | 0.05% | 0.05% |
| Color fastness | ISO 105-002 | rating | ≥6 | ≥6 |
| Abrasion group | EN649 | group | T | T |
| Thermal resistance | EN12667 | Mk/w | <0.17 | <0.17 |
| Thermal conductivity | EN 12524 | W/Mk | 0.25 | 0.25 |
| ADDITIONAL PROPERTY | ||||
| Castor chair | Underfloor heating | V | V | |
| Antistatic behavious | Chemical resistance | V | V |
| characteristics | standard | unit | result |
| type flooring | EN 649 | heterogeneous sheet | |
| material | polyvinyl chloride | ||
| safety criteria | |||
| flammability | GB 8624-2006 | class | BF1 |
| slip resistance | BGR 181 | group | R9 |
| dynamic coefficient of friction | EN 13893 | class | DS |
| impact sound reduction | ISO 140-8 GB/T 11982.1-1989 | dB | 10 |
| performance behavior | |||
| roll width | EN 426 | m | 2.0 |
| roll length | EN 426 | m | 15-20 |
| overall thickness | EN 428 | mm | 2.0-3.0 |
| thickness of wear layer | EN 429 | mm | 0.35-0.5 |
| residual indentation | EN 433 | mm | 0.08 |
| dimensional stability | EM 434 | - | 0.05% |
| color fastness | ISO 105-B02 | rating | ≥6 |
| wear resistance | EN 649 | group | T |
| thermal resistance | EN 12667 | ㎡K/W | ＜0.17 |
| thermal conductivity | EN 12524 | W/Mk | 0.25 |
| additional property | |||
| castor chair | √ | underfloor heating | √ |
| antistatic behavious | √ | chemical resistance | √ |
