| Overall thickness | 1.5×0.1mm / 2×0.1mm / 2×0.2mm |
| Size | 152.4×914.4mm |
| Embossing | BP/ Smooth |

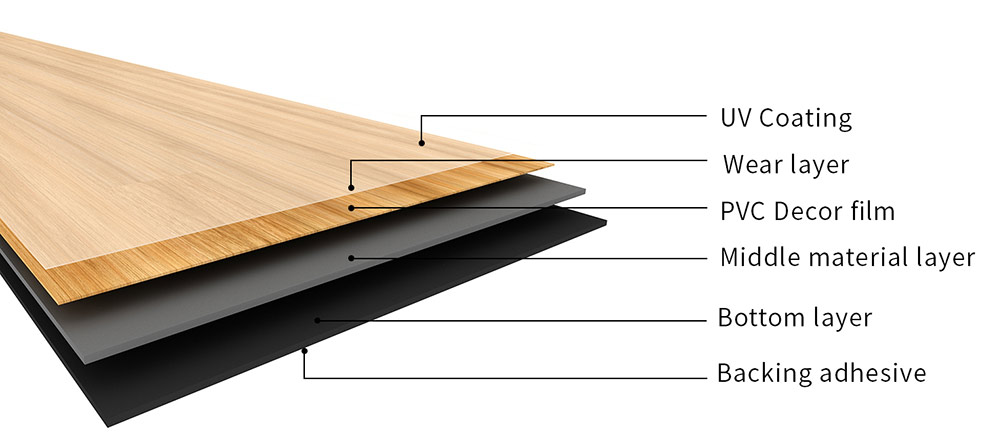

UV Coating:Enhance the surface gloss of the floor, have a certain anti-skid function
Wear layer:Protect the floor color from wear and tear
PVC decor film:The colors are clear and natural, providing the natural look of wood flooring
Middle material layer:Ensure floor stability
Bottom layer:The use of gravity coatings with micro-flow properties, which are unaffected by changes in temperature or humidity, guarantees the stability of the floor
Backing adhesive:Tear-and-stick, cost-saving, easy to install
Low thickness, small size products
Low cost with adhesive backing
Easy to install, suitable for DIY use in domestic places
Technical Data
| Product information | Vinyl Sheet | |
| Material | 100% virgin PVC+Calcium calcite powder | |
| Plank Size | ||
| Thickness | ||
| Wear Layer Thickness | ||
| Planks/Box | ||
| Density | 2000kg/m3 | |
| Weight/m2 | ||
| Sq.m/Box | ||
| Finish | UV Coating, gloss 6-8 | |
| Emboss | Deep embossed | |
| Installation | Glue down | |
| Floor heating installation | Water/underfloor heating ok, electric heating NOT ok. | |
| Warranty | 20 years residential/15 years commercial (with good maintain) | |
| REFERENCE | NORMS | RESULT |
| Tolerance of Length | EN ISO 24341 | Not less than normal value |
| Tolerance of Width | EN ISO 24341 | Not less than normal value |
| Determination of stability | EN ISO 23999 | ≤0.40% |
| Curling | EN ISO 23999 | ≤8mm |
| Color fastness | EN ISO105-B02 | 6 class |
| Reaction to Fire | EN 13501-1 | Bf1-S1 |
| Castor Chair Resistance | EN ISO4918 | Pass |
| Classification | EN685 | Class 23 for residential |
| Class 33for commercial | ||
| Stain Resistance | EN423 | Not affected |
| VOC | ISO 16000 | VOC A+ |
| Slip Resistance | DIN51130 | Class R9 |
| Residual Indentation | ISO24343-1:2007 | ≤0.1mm |
| Chemical Products Resistance | EN423 | Pass |
| Ortho-Phthalates | US EPA 3550c:2007 | None |
| PCP | EN 12673 | None |
| Formaldehyde Emission | EN717-1 | E1 |

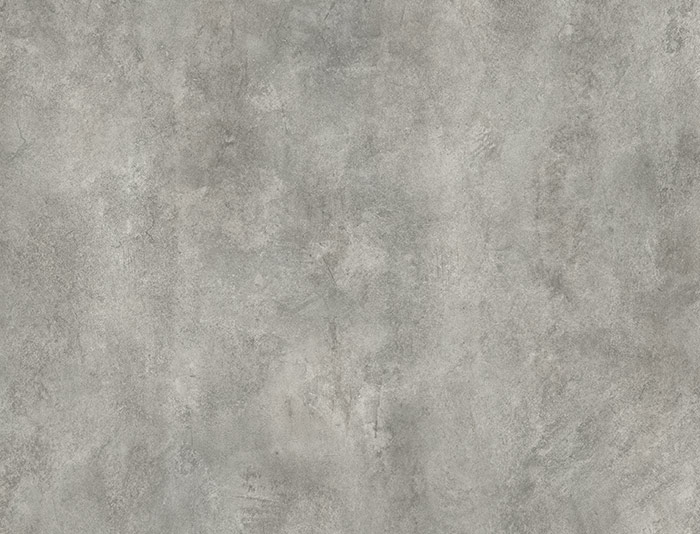

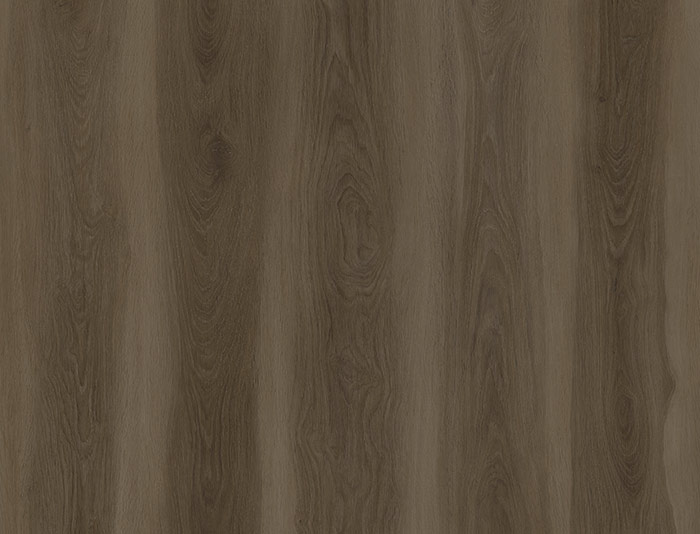

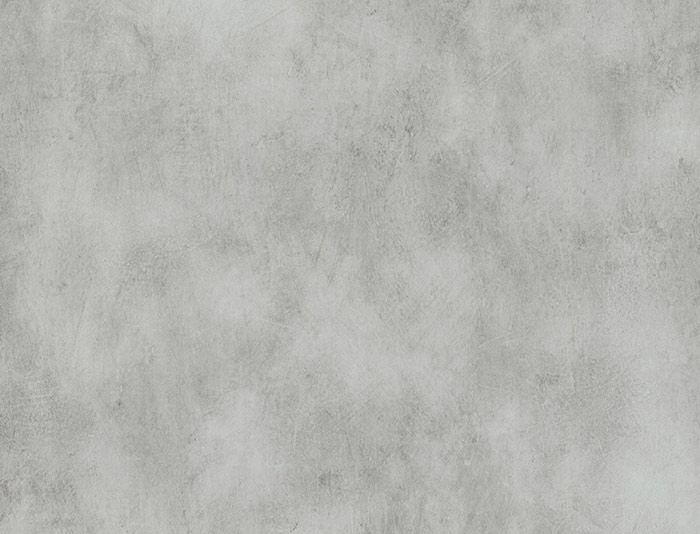

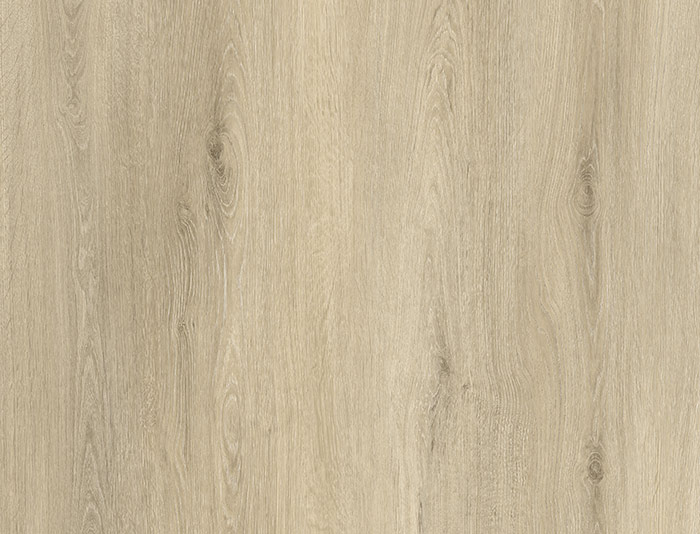

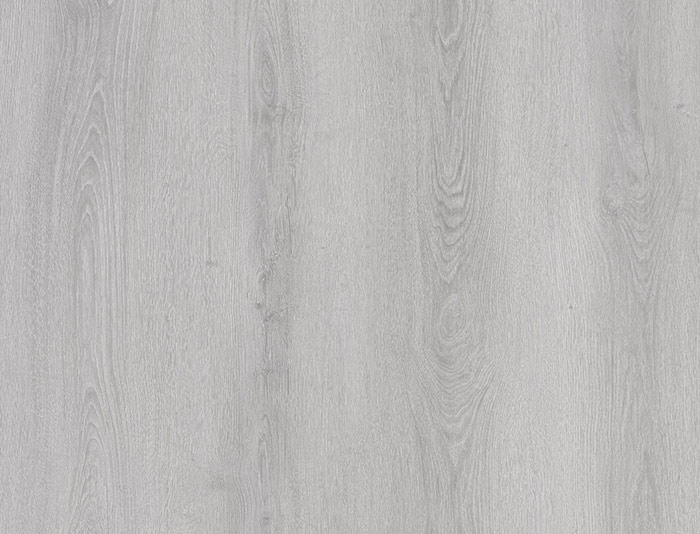

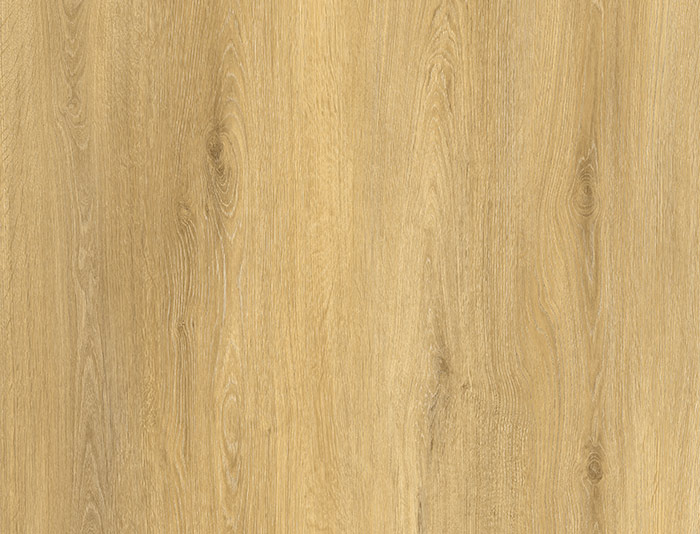

Color
TCP-2661
TCP-2662
TCP-2663
TCP-2664
TCP-2665
TCP-2666
TCP-2667

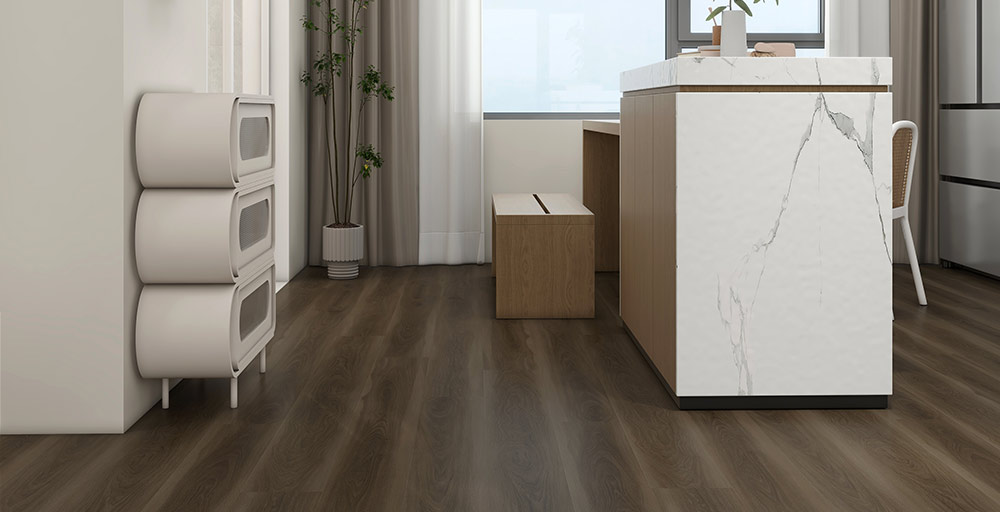

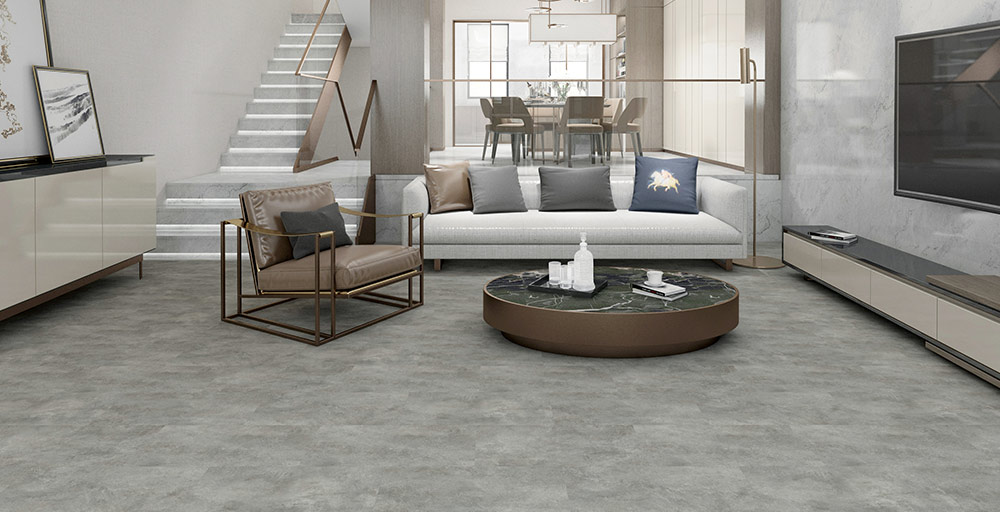

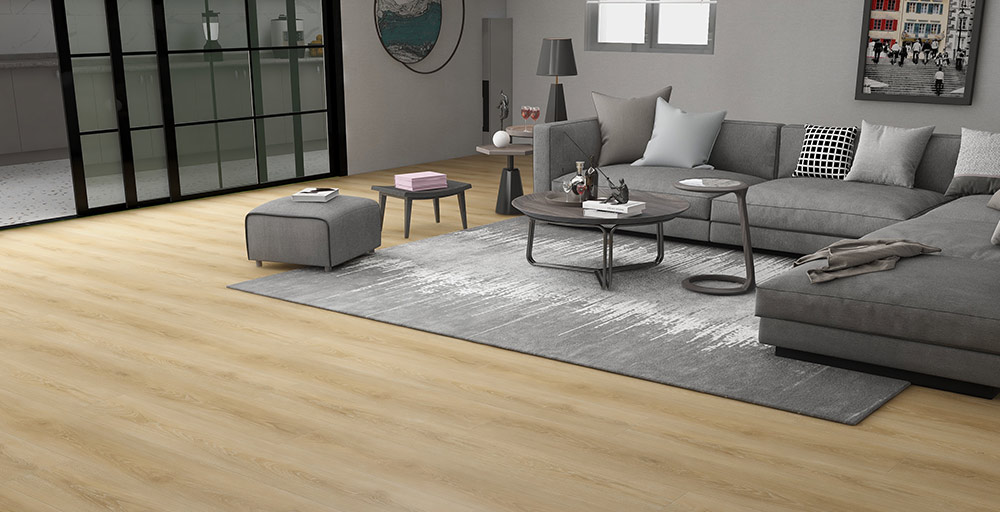

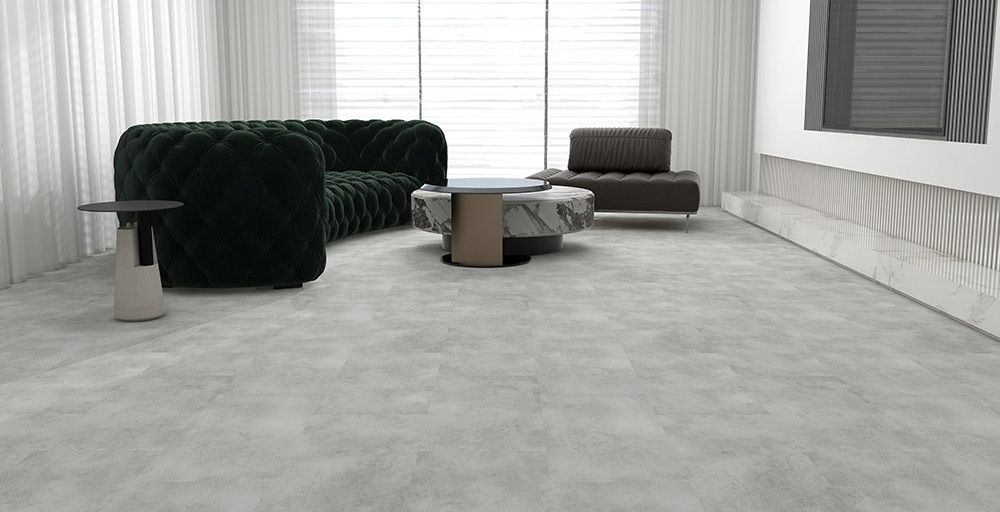

SPC floors come in a variety of colors and patterns, including wood/marble/carpet patterns, so it's easy to find the right style for your business and project.
100% Waterproof
Acoustic Comfort
Antibacterial
Anti Scratch
Easy Clean
Eco Friendly
Extreme Stability
Fireproof
Hard Wearing
Pet Free
Top vinyl flooring supplier is at your service
If you want to customize floorings for your own brands, or purchase for your projects.please leave a message here, we will send our quotation and arrange the delivery of freesamples as soon as possible.
